Chicken farm suggestion for 30000 layers

For 30,000 layers, We suggest,

(1)build two chicken room, each room capacity 15000 birds.

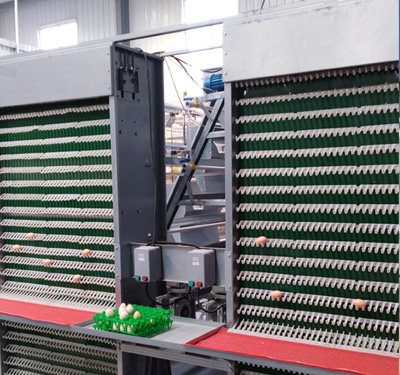

(2)chicken cage,4 tier,

Size: 2.2m*2.4m*1.95m,

Capacity: 160 birds/set,

Quantity: 192 sets,

Each room 96 sets of chicken cage

(3)automatic feeding machine

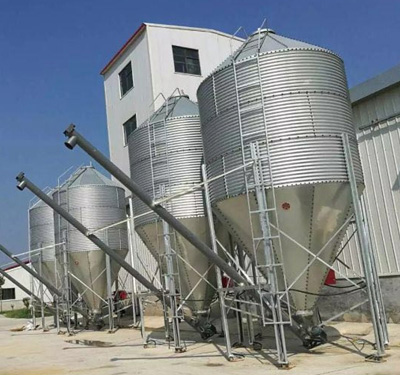

(4)silo

(5)automatic egg collection machine

(6)manure cleaning system

(7)ventilation fan and wet curtain

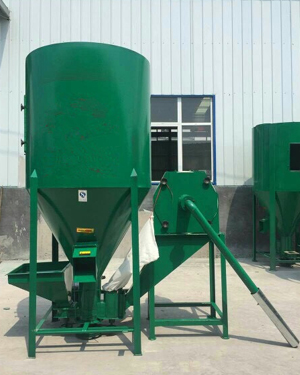

(8)feed mill machine(mixer and grander), 2 ton/hour

Make the feeding food, then save the cost.

(9)manure drying machine, make money from the manure.

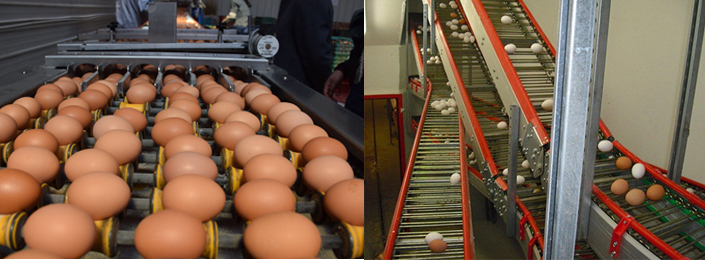

If the budget is enough, you also can order the egg convey system, i will transfer all the eggs to one place automatically.

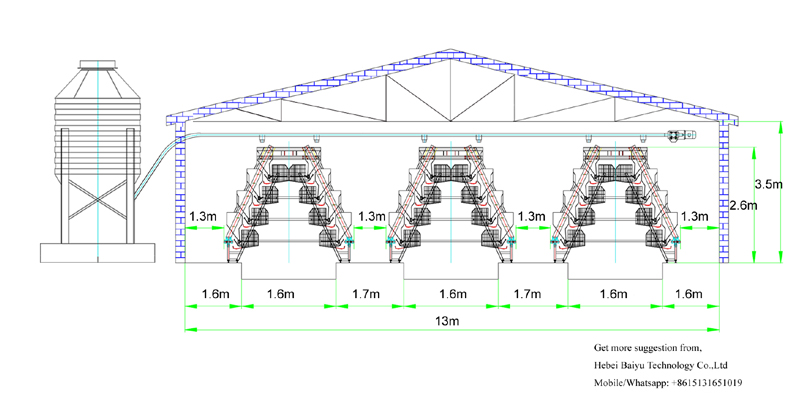

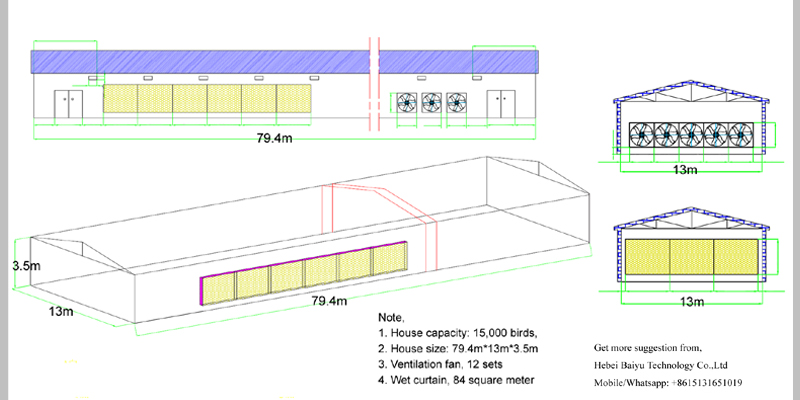

Two chicken house, each chicken house design as below,

House capacity: 15,000 birds,

House size: 79.4m*13m*3.5m

chicken cage quantity: 96 sets chicken cage for each chicken house

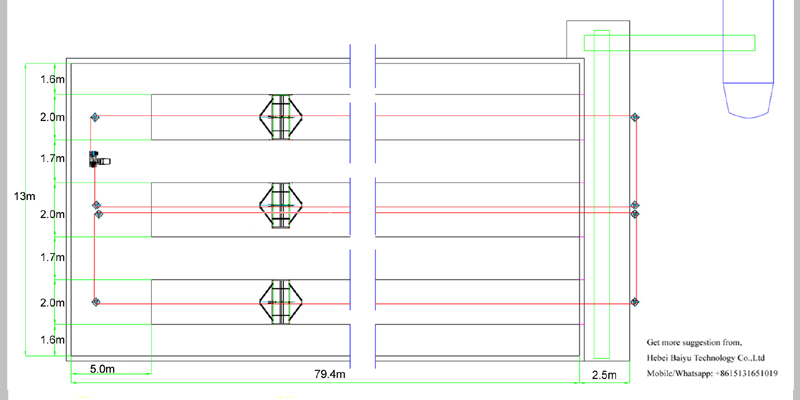

Chicken cage layout: three rows, each row 32 sets, 70.4m length,

Manure pit size: 2.2m width, 0.3m depth.

Ventilation fan: 12 sets for each room

Wet curtain : 84 square meter for each room
